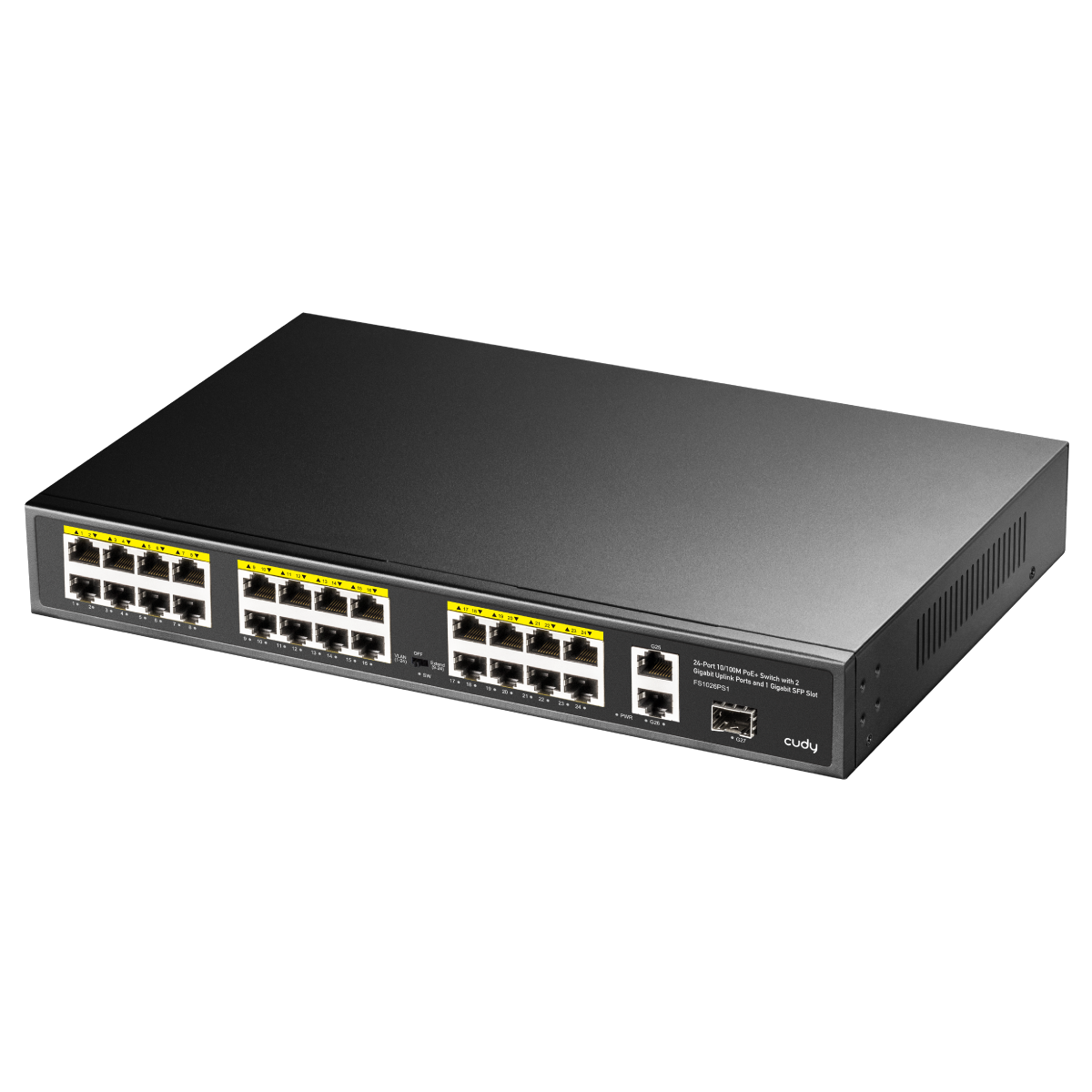

24-Port 10/100M PoE + Switch with 2Gbit Uplink + 1 Gbit Combo SFP Port
24-Port 10/100M PoE + Switch with 2Gbit Uplink + 1 Gbit Combo SFP Port
Regular price
23,250.00 RSD
Regular price
Sale price
23,250.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
FS1026PS1
● 24 x 10/100M PoE+ ports
● 2 x Gigabit Uplink port
● 1 x 1.25Gbps SFP slot
● 300 Watts PoE power budget
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed
| Model | FS1026PS1 | ||
| Connector Type | 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot | ||
| Network Protocols | IEEE802.3
IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
| Max each port: 15.4W ( IEEE 802.3af )
Max each port：30W ( IEEE 802.3at ) |
|||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media | 10BASE-T: Cat 6 UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
| Optical | MultiMode Fiber: 850nm, 1310nm,
Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
| Performance Specification | Bandwidth: 10.8Gbps | ||
| MAC Address: 2K | |||
| Packet Buffer Memory: 1M | |||
| Packet Forwarding Rate: 8Mpps | |||
| Forwarding Mode: Store-And-Forward | |||
| Power Supply | Product Input Voltage: AC100-240V 50/60Hz
Power Budget: 300W |
||
| Led indicator | PWR | Power supply indicator (Red) |
Lighting：Powered
Un-Light：No Power |
| Led indicator | SW | DIP indicator (Green) |
OFF: Normal Vlan: Lighting Extend: Slow flash |
| 1-27 | RJ-45 ACT indicator (Green) |
Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |
|
| Working Environment | Operating Temperature: -20℃ ~ 50℃; | ||
| Storage Temperature: -40℃ ~ 85℃; | |||
| Operating Humidity: Max 90%, non-condensing | |||
| Storage Humidity: Max 95%, non-condensing | |||
| Working Height: Max to 10,000 feet (3,000 meters） | |||
| Storage Height: Max to 10,000 feet (3,000 meters) | |||
| Physical Parameter | Product Dimension (L*W*H): 320mm*210mm*46mm | ||
| Package Dimension (L*W*H): 375mm*270mm*85mm | |||
| N.W: 1.9KG | |||
| G.W: 2.4KG | |||
| MTBF | 100,000 hours | ||
