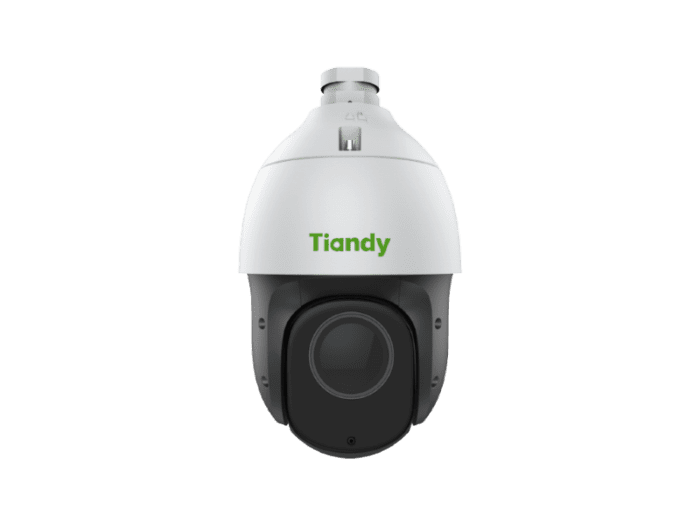

2MP 23× Starlight IR PTZ Color Camera SPEED DOME PRO SMD TC-H324S
2MP 23× Starlight IR PTZ Color Camera SPEED DOME PRO SMD TC-H324S
Regular price
74,000.00 RSD
Regular price
Sale price
74,000.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
TC-H324S
Spec: 23X/I/E/C/V3.0
OPIS:
·Up to 1920X1080@30fps
·Optical zoom: 23×
·Smart IR, IR Range: 150m
·S 265/H.265/H.264/M-JPEG
·Intelligent monitoring
·Support Human/Vehicle Classification
·Plugin Free
·IP66
·Min. Illumination 0.001lux
TEHNIČKI PODACI:
| Camera | |
|
Image Sensor
Signal System |
1/2.8″ CMOS
PAL/NTSC |
| Min. Illumination | Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | IR Cut Filter with Auto Switch |
| Optical Zoom | 23X |
| Digital Zoom | N/A |
| Lens | |
| Focal Length | 5mm~115mm |
| Zoom Speed | <4s |
| Horizontal filed of view: 55.8° (w)~3.2° (t) | |
|
Field of View
Aperture Range |
Vertical field of view: 32.2° (w)~1.8° (t) Diagonal field of view:61°(w)~3.64°(t) F1.5~F3.0 |
| Focus Control | Auto/Manual |
| Iris Control | Auto |
| Close Focus Distance | 1 m‒1.5 m |
| Pan&Tilt | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range | -16°~90° (Default -3°~90°) |
| Tilt Speed | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| 3D Position | Yes |
| Preset | 500 |
| Preset Accuracy | ±0.4° |
| Cruise | 16, up to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8, each with 600s memory or 1000 orders |
| Scheduled Task | Preset、Cruise、Scan、Pattern |
| Park Action | Yes |
| Power-off Memory | Yes |
| Preset Freezing | N/A |
| Illuminator | |
| IR LEDs | 7 |
| IR Distance | Up to 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| White LEDs | N/A |
| Laser | N/A |
| Laser Distance | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | N/A |
| Audio Sampling Rate | N/A |
| Image | |
| Max. Resolution | 2MP (1920×1080) |
| PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) | |
| Main Stream | NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| Sub Stream | NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
|
Third Stream
BLC |
PAL: 25fps (352×288) NTSC: 30fps (352×240)
Yes |
| HLC | Yes |
| WDR | True WDR |
| Image Stabilization | N/A |
|
Fog
White Balance |
Digita
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| AGC | Yes |
| Noise Reduction | 2D/3D |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| Picture Overlay | Yes |
| Privacy Mask | N/A |
| Smart Defog | Yes |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Flip | Yes |
| OSD | 16×16, 24×24,32×32, 48×48, 64×64, adaptable size, Letters such as Week, Date, Time, Total 5 Regions |
| Feature | |
| Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception | |
| Alarm Trigger | |
|
Video Analytics
Early Warning(EW) |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost,Heatmap,Video Abnormal
N/A |
| Auto-Tracking | N/A |
| Face Detection and Analytics | |
| Operating Mode | N/A |
| Face Detection Performance | N/A |
| Face Exposure Brightness | N/A |
| Min. Face Pixel | N/A |
| Network | |
| HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/ | |
|
Protocols
System Compatibility |
Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P |
| Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support | |
|
ANR
Remote Connection |
Tiandy ANR NVR)
≤2 |
| User/Host | Up to 32 users. 4 user levels |
| Web Version | web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-In Speaker | N/A |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| RS-485 | N/A |
| BNC | N/A |
| Wiper | N/A |
| Electronic Compass | N/A |
| GPS/BDS | N/A |
| General | |
| Protection | IP66 , TVS 6000V lightning protection, surge protection and voltage transient protection |
| 17 languages | |
|
Web Client Language
Operating Conditions |
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/French/ Polish/ Dutch/ Hebraism/ Arabic/ Vietnamese/ German/ Ukrainian
-30°C~65°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH |
| Power Supply | DC12V±10%/POE+(IEEE802.3 at) |
| Power Consumption | 7.3W(IR OFF), 17.6W(MAX) |
| Heater | N/A |
| Material | ADC 12, PC+ABS |
| Package/Boundary Dimensions | Φ250x445mm (Φ161x276mm) |
| Gross/Net Weight | 3.7kg (2kg) |
