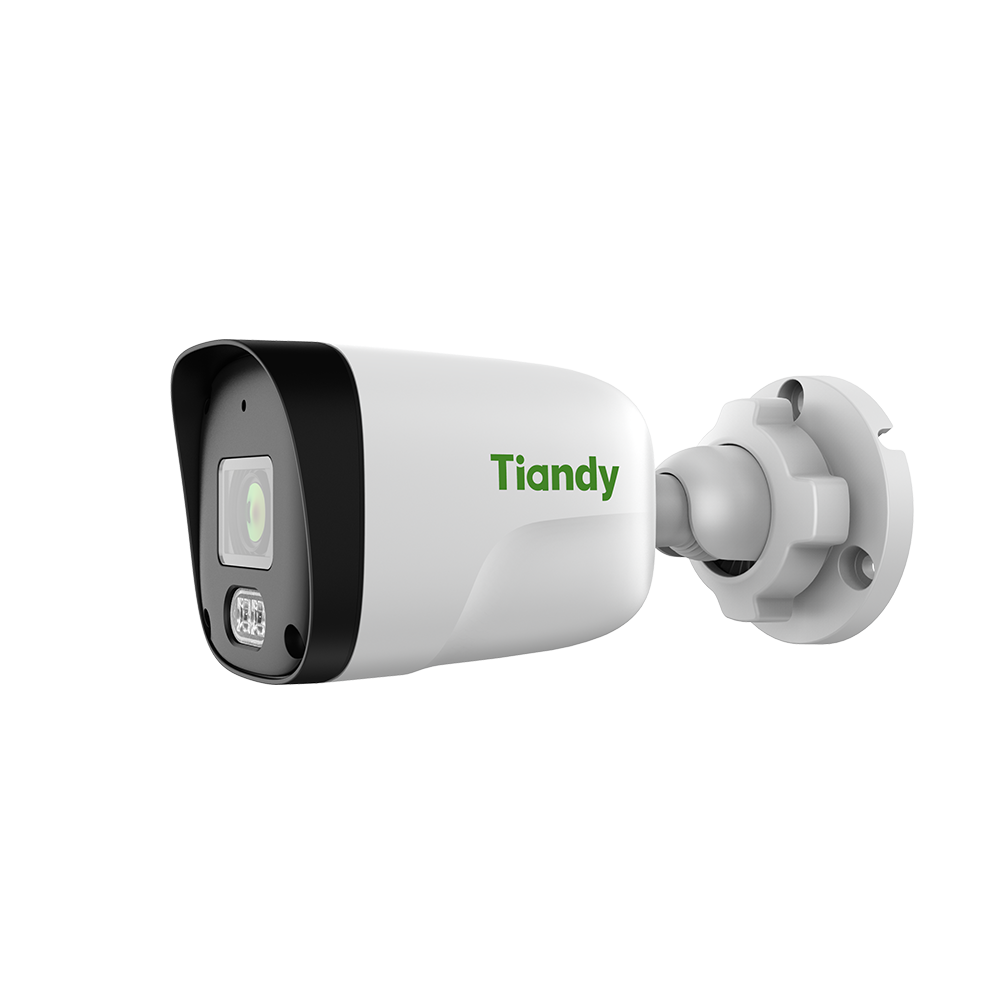

2MP Fixed Bullet Color Camera IP SPARK TC-C32QN
2MP Fixed Bullet Color Camera IP SPARK TC-C32QN
Regular price
5,500.00 RSD
Regular price
8,000.00 RSD
Sale price
5,500.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
TC-C32QN
Spec:I3/E/Y/2.8mm/V5.1
Opis:
·Up to 1920×1080@25fps
·S 265/H.265/H.264
·Min. illumination Color: 0.02Lux@F2.0
·Smart IR, IR Range: 30m
·Built-in Mic
·Operating Conditions -30°~60°, 0~95% RH
·POE, IP67·Color camera
TEHNIČKI PODACI:
| Camera | |
| Image Sensor | 1/2.9″CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >37dB |
| Angle Adjustment | 0-360°;0-80°;0-360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.0,Fixed |
| Field of View | 102.8°(H);57.6°(V);117.8°(D) |
| DORI Distance | Detect:40.0m Observe:15.9m Recognize:8.0m Identify:4.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 30m |
| Wavelength | 850nm |
| White LEDs | N/A |
| Whitelight Distance | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k-4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080,1280×720,704×576,640×480) NTSC:30fps(1920×1080,1280×720,704×480,640×480) |
| Sub Stream | PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) |
| Third Stream | N/A |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | N/A |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 1region;16*16/32*32/48*48 |
| Picture Overlay | N/A |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection;IP Address Conflict |
| Linkage Method | trigger capture |
| Video Analytics | N/A |
| Rules of behavior analyse in 1 scene | N/A |
| Early Warning(EW) | N/A |
| Auto-Tracking | N/A |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Network | |
| ANR | N/A |
| Protocols | HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnet;Unicast |
| System Compatibility | onvif Profile S/T;CGI;MIL STONE |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-In Mic | Yes |
| Built-In Speaker | N/A |
| Reset Button | N/A |
| On-board storage | N/A |
| Additional interfaces | N/A |
| General | |
| Web Client Language | 12languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
| Operating Temperature | -30℃-60℃ |
| Operating Humidity | 0-95% |
| Storage Temperature | -30℃-60℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | POE 802.3af,MAX 6W |
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 |
| Boundary Dimensions | 164(L)73(W)73(H)mm |
| Package Dimensions | 180(L)90(W)95(H)mm |
| GrossWeight | 0.3kg |
| NetWeight | 0.22kg |
