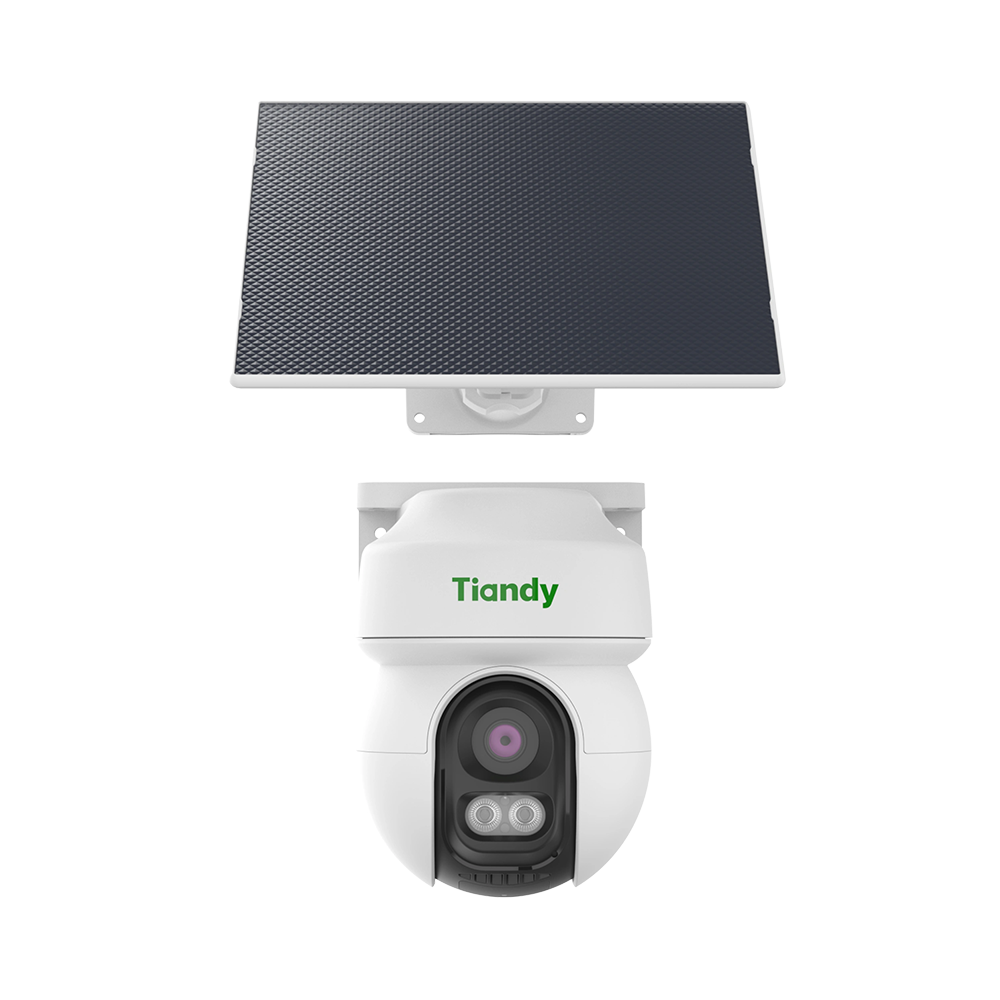

3MP Fixed Color Maker 4G PT Camera (TC-H333K 9DA-4)
3MP Fixed Color Maker 4G PT Camera (TC-H333K 9DA-4)
Couldn't load pickup availability
|
Camera |
|
|
Image Sensor |
1/3"CMOS |
|
Min. Illumination |
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s-1/100000s |
|
Day&Night |
Fixed IR-cut |
|
WDR |
DWDR |
|
S/N |
≥52dB |
|
Angle Adjustment |
0~345°; 0~90° |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
4mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6 |
|
Aperture Type |
Fixed |
|
Field of View |
79.6°(H); 42.5°(V); 91.7°(D) |
|
DORI Distance |
Detect: 59.26 m Observe: 23.52 m Recognize: 11.85 m Identify: 5.93 m |
|
Pan&Tilt |
|
|
Pan Speed |
30°/s |
|
Tilt Speed |
25°/s |
|
Preset |
64 |
|
Illuminator |
|
|
IR LEDs |
2 |
|
IR Distance |
Up to 30m |
|
Wavelength |
850nm |
|
White LEDs |
2 |
|
Whitelight Distance |
15m |
|
Red and Blue Alarm Flash |
Yes |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265 |
|
Video Bit Rate |
1.2Mbps |
|
Audio Compression |
G.711A |
|
Audio Sampling Rate |
16kHz |
|
Image |
|
|
Max. Resolution |
3MP,2304×1296@20fps |
|
Main Stream |
PAL:20fps(2304×1296) |
|
Sub Stream |
PAL:20fps(704x576) |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto |
|
OSD |
48*48; Lattice |
|
Feature |
|
|
General Alarm |
Smart Alarm(human and vehicle detection) |
|
Exceptions Alarm |
Disk Full; Disk R/W Error |
|
Linkage Method |
Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
|
Auto-Tracking |
Auto-Tracking |
|
Network |
|
|
Protocols |
TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Mobile Client |
EasyLive Plus |
|
Interface |
|
|
Built-in Mic |
1×Built-in Mic |
|
Built-in Speaker |
1×Built-in Loudspeaker |
|
Reset Button |
Yes |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 256GB |
|
General |
|
|
Operating Temperature |
-10℃~50℃(14℉~122℉) (Charge:-5℃~50℃) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-10℃~50℃(14℉~122℉)， |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC5V±25%,Max. 10W |
|
Protection |
Surge500V; ESD6000V; IP65 |
|
Boundary Dimensions |
158(L)105W)144(H)mm |
|
Package Dimensions |
255(L)200(W)180(H)mm |
|
GrossWeight |
1.27kg |
|
NetWeight |
0.56kg（No Solar panels） |
