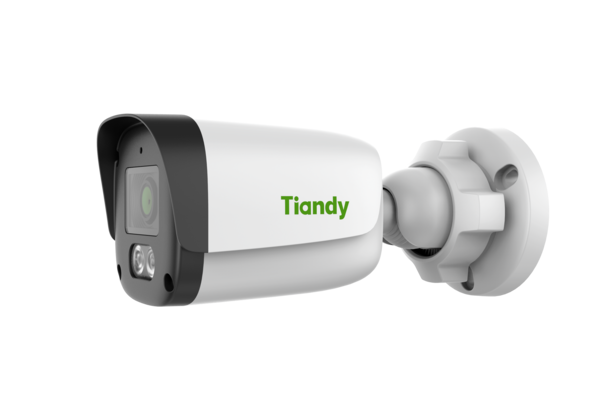

4MP Fixed Bullet Color Camera IP SUPERLITE TC-C34QN
4MP Fixed Bullet Color Camera IP SUPERLITE TC-C34QN
Regular price
10,900.00 RSD
Regular price
Sale price
10,900.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
TC-C34QN
Spec:I5W/E/Y/4mm/V4.2
OPIS:
·Metal+Plastic Housing
·Up to 2688X1520@25fps
·S+265/H.265/H.264
·Min. illumination Color: 0.02Lux@F1.6
·Smart IR, IR Range: 50m
·Built-in Mic
·Operating Conditions -30°~60°, 0~95% RH
·Support tripwire and perimeter
·POE, IP67
·2 Warm lights 15m
·Color camera
TEHNIČKI PODACI:
| Camera | |
| Image Sensor | 1/2.9″CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| S/N | >40dB |
| Angle Adjustment | 0-360°;0-80°;0-360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 4mm |
| Aperture Range | F1.6,Fixed |
| Field of View | 83.2°(H);43°(V);93.7°(D) |
| DORI Distance | Detect:80.0m Observe:31.7m Recognize:16.0m Identify:8.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k-6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 2688×1520@25fps |
| Third Stream | N/A |
| BLC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | 8 regions |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 1region;16*16/32*32/48*48/64*64 |
| Picture Overlay | N/A |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection;Mask Alarm;IP Address Conflict |
| Linkage Method | trigger warmlight;trigger capture |
| Video Analytics | Tripwire;Perimeter |
| Rules of behavior analyse in 1 scene | 2 |
| Early Warning(EW) | N/A |
| Auto-Tracking | N/A |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Network | |
| ANR | N/A |
| System Compatibility | P2P(Mutually exclusive with Profile G);onvif Profile S/T;CGI;MIL STONE |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-In Mic | Yes |
| Built-In Speaker | N/A |
| Reset Button | N/A |
| On-board storage | N/A |
| Additional interfaces | N/A |
| General | |
| Web Client Language | 19languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -30℃-60℃ |
| Operating Humidity | 0-95% |
| Storage Temperature | -30℃-60℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | DC12V±25%,MAX 6.5W;POE 802.3af,MAX 7W |
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 |
| Boundary Dimensions | 164(L)73(W)73(H)mm |
| Package Dimensions | 180(L)90(W)95(H)mm |
| GrossWeight | 0.3Kg |
| NetWeight | 0.25Kg |
