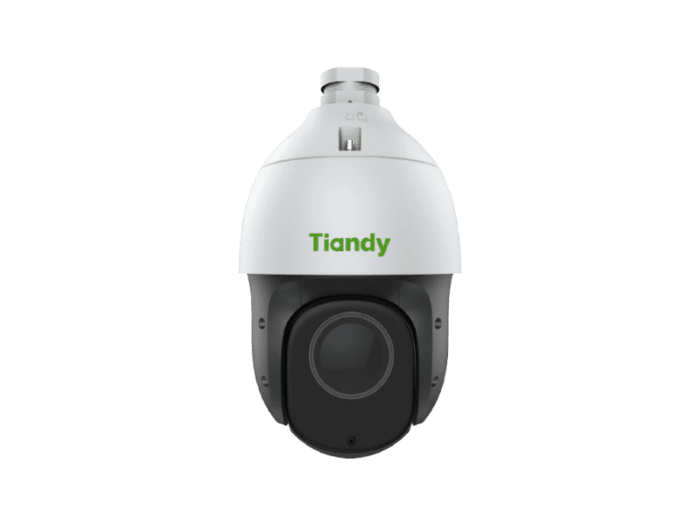

5MP 23× Starlight IR POE AI PTZ Color Camera SPEED DOME PRO TURBO AI+
5MP 23× Starlight IR POE AI PTZ Color Camera SPEED DOME PRO TURBO AI+
Regular price
65,000.00 RSD
Regular price
Sale price
65,000.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
TC-H354S
Spec: 23X/I/E/V3.0
OPIS:
·Up to 2880×1620@30fps
·Optical zoom: 23×, digital zoom 16×
·Smart IR, IR Range: 150m
·S+265/H.265/H.264/M-JPEG
·Intelligent monitoring
·Support Human/Vehicle Classification
·Plugin Free
·IP66
·Color camera
TEHNIČKI PODACI:
| Camera | |
|
Image Sensor
Signal System |
1/2.8″ CMOS
PAL/NTSC |
| Min. Illumination | Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | IR Cut Filter with Auto Switch |
| Optical Zoom | 23X |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5mm~115mm |
| Zoom Speed | <5s |
| Horizontal filed of view: 58° (w)~3.0° (t) | |
|
Field of View
Aperture Range |
Vertical filed of view: 39.7° (w)~2.2° (t) Diagonal field of view:63.1°(w)~3.7°(t) F1.6~F3.6 |
| Focus Control | Auto/Manual |
| Iris Control | Auto |
| Close Focus Distance | 1 m‒3 m |
| Pan&Tilt | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range | -16°~90° (Default -3°~90°) |
| Tilt Speed | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| 3D Position | Yes |
| Preset | 500 |
| Preset Accuracy | ±0.4° |
| Cruise | 16, up to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8, each with 600s memory or 1000 orders |
| Scheduled Task | Preset、Cruise、Scan、Pattern、Alarm output |
| Park Action | Yes |
| Power-off Memory | Yes |
| Preset Freezing | N/A |
| Illuminator | |
| IR LEDs | 7 |
| IR Distance | Up to 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| White LEDs | N/A |
| Laser | N/A |
| Laser Distance | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8K～48Kbps |
| Image | |
| Max. Resolution | 5MP (2880×1620) |
| PAL: 25fps (2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) | |
| Main Stream | NTSC: 30fps (2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080,1280×720) PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| Sub Stream | NTSC: 30fps (704×480, 704×240, 640×360, 352×240) PAL: 25fps (640×480, 704×576, 704×288, 352×288) |
|
Third Stream
BLC |
NTSC: 30fps (640×480, 704×480, 704×240,352×240)
Yes |
| HLC | Yes |
| WDR | True WDR |
