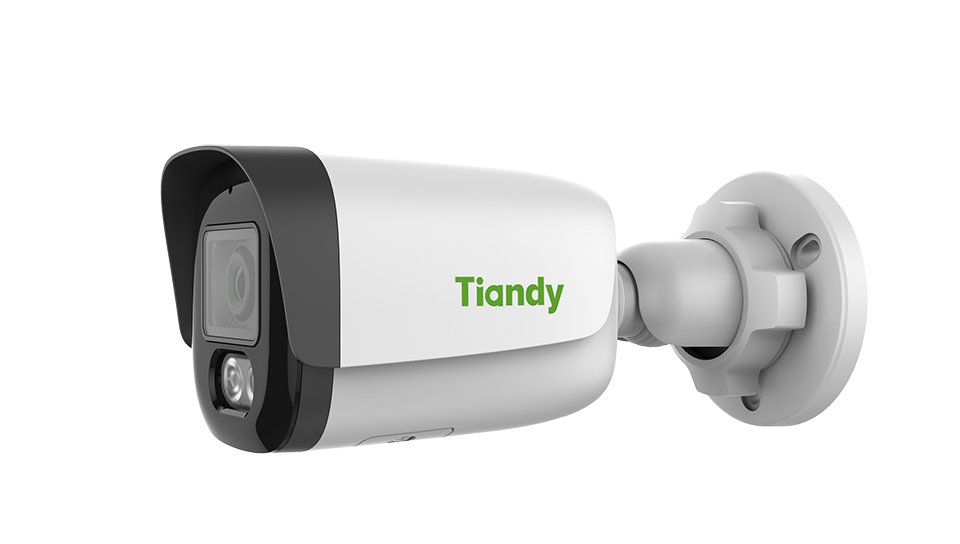

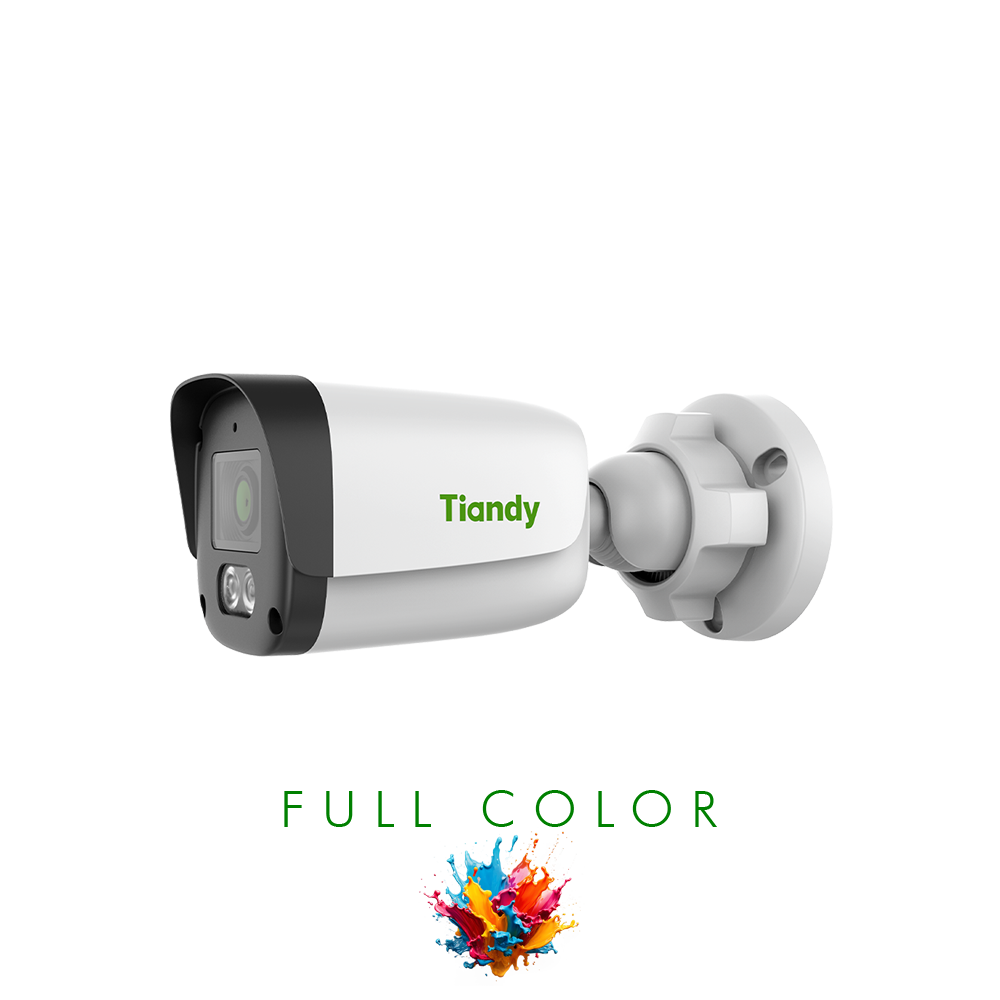

5MP Fixed EW Bullet Color Camera IP PRO TC-C35WQ
5MP Fixed EW Bullet Color Camera IP PRO TC-C35WQ
Regular price
21,100.00 RSD
Regular price
Sale price
21,100.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
TC-C35WQ
Spec:I5W/E/Y/2.8mm/V4.2
OPIS:
·Metal Housing
·Up to 2880×1620@30fps
·S+265/H.265/H.264/M-JPEG
·Min. illumination Color: 0.002Lux@F1.6
·Smart IR, IR Range: 50m
·Support tripwire and perimeter
·Support Face Capture Mode
·Support Human/Vehicle Classification
·Built-in Mic, support max 512G Micro SD Card
·Operating Conditions -40℃~65℃, 0~95% RH
·DC12V,POE
·IP67
·15M White Light
·Color camera
TEHNIČKI PODACI:
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket, pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
|
FOV |
Horizontal field of view: 104.2°（2.8mm）88.7°（4mm） Vertical field of view: 58.8°（2.8mm）46.8°（4mm）
Diagonal field of view: 116.8°（2.8mm）101.9°（4mm） |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| White LEDs/Warmlights | 2 |
| Range | 15-20m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32 Kbps~16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2880×1620 |
| Main Stream | PAL: 25fps（2880×1620，2688×1520，2560×1440，2304×1296）50fps（1920×1080，1280×720） |
| NTSC: 30fps（2880×1620，2688×1520，2560×1440，2304×1296）60fps（1920×1080，1280×720） | |
| Sub Stream | PAL: 25fps(704×576，704×288，352×288，640×360） |
| NTSC: 30fps(704×480，704×240，352×240，640×360） | |
| Third Stream | PAL：25fps(1280×720，704×576，640×360，704×288，352×288) |
| NTSC：30fps(1280×720，704×480，640×360，704×240，352×240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 8 |
| OSD | 16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| Early Warning(EW) | Yes |
| Network | |
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only
Support Tiandy ANR NVR) |
| Protocols | HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,DHCP,DNS,DDNS, Easy DDNS,NTP,SSL,802.1X,QoS,IPV4,IPV6,PPPoE,SSH,Unicast,Multicast,RTCP,ARP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI,Milestone,SRTP,RTMP |
| Remote Connection | ≤2 |
| Client | Easy7, EasyLive Plus |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Speaker | Yes |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| General | |
|
Web Client Language |
17 languages
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukra inian |
| Operating Conditions | -40℃～65℃, 0～95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 7W(12V) MAX: 8W(POE) |
| Protection | IP67 |
| Heater | N/A |
| Dimensions | 170.7×68x68mm |
| Net Weight | 0.52kg |
|
Dimensions of single packing case Gross Weight
Volume of packing box |
210×92x110mm |
| 0.65kg | |
| 24 |
