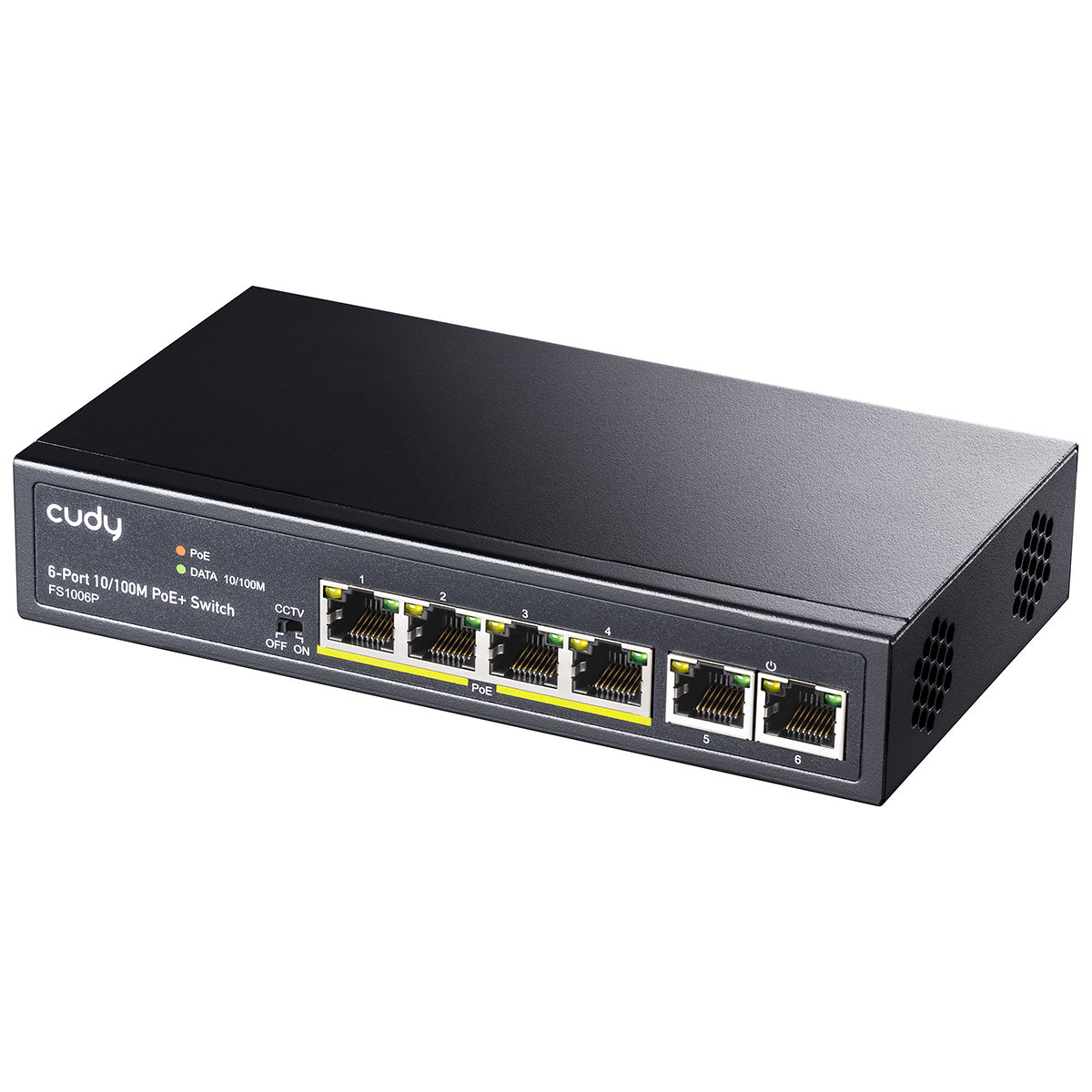

6-Port 10/100M PoE + Switch with 2 Uplink Ports
6-Port 10/100M PoE + Switch with 2 Uplink Ports
Regular price
4,400.00 RSD
Regular price
Sale price
4,400.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
FS1006P
● Complies with IEEE802.3af/at Standard
● Supports PoE power up to 32W for each PoE port
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes
● CCTV/VLAN mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex flow control
● Supports storage and forward for Data exchange
| Model | FS1006P |
| PoE standard | IEEE802.3af/at |
| Interface | 6*10/100Mbps RJ45 port |
| key function | CCTV |
| PoE port | 1-4 |
| PoE Total | 60W |
| Power supply | 65W |
| RJ45 PoE power supply | Mode A Anode1/2 Cathode3/6 |
| PoE output-port | Max 32W |
| Indicator | PWR, LNK/ACT, PoE |
| Network media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m) |
| MAC Address Table | 2K, Automatic study, automatic updates |
| jumbo frame | 1528K Bytes |
| Packet buffer | 768K bit |
| Transfer Mode | Store-and-forward |
| Packet forwarding rate | 0.89Mpps |
| Bandwidth | 1.2Gbps |
| Fan | Fanless |
| Device Dimension | 168*93*32mm |
| Machine weight | <1kg |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC:55V/1.5A |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | ±4KV |
| Certification | CE, FCC Class A |
| MTBF | >50000 hour |
| Electrostatic standard | Contact 4KV, air 6KV |
