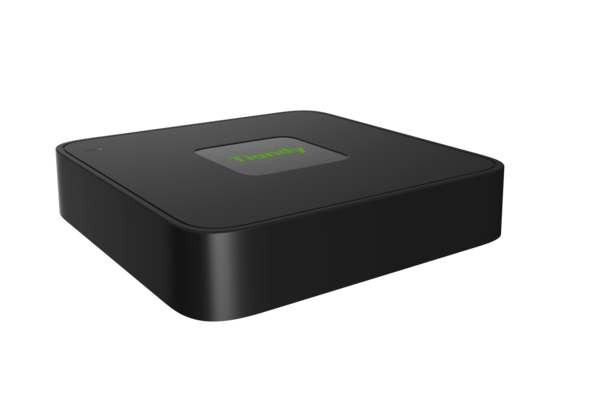

H.265 1 HDD 5ch NVR Lite
H.265 1 HDD 5ch NVR Lite
Couldn't load pickup availability
KEY FEATURES
HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Support live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
• 1×HDMI and 1×VGA simultaneous outputs
• HDMI Video output at up to 4K resolution
HD Storage
• 1 SATA interface, up to 8TB for 1 HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Web6 supports plug-in free browsing and can preview videos on all browsers
• Support cloud upgrade
| Video and Audio | |
| Access Channel | 5 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview decoding capability | 6MP*1,5MP*1,4MP*2,3MP*2,1080P*4,720P*5,4CIF*5 |
| Playback decoding capability | 6MP*1,5MP*1,4MP*1,3MP*2,1080P*3,720P*4 |
| Video Output | simultaneous HDMI and VGA outputs |
| HDMI Output | HDMI:1024*768(60Hz),(720P )1280*720(50Hz/60Hz),1280*800(60Hz),
1440*900(60Hz),(1080P)1920*1080(50Hz/60Hz),(4K)3840*2160(30Hz) |
| VGA Output | VGA:1024*768(60Hz),(720P )1280*720(50Hz/60Hz),1280*800(60Hz),
1440*900(60Hz),(1080P)1920*1080(50Hz/60Hz) |
| Multi-screen Display | 1/3/4/5/6 |
| Third-party Camera Access | ONVIF;RTSP |
| Audio Input | N/A |
| Audio Output | N/A |
| Two-Way Audio | N/A |
| Liveview display | Simultaneous Output:
VGA: 1/3/4/5/6 HDMI: 1/3/4/5/6 |
| Compression | |
| Video | S+265;H.265;S+264;H.264 |
| Audio | G711A;G711U;AAC;ADPCM_DIV4 |
| Stream Type | Video;Video & Audio |
| Network | |
| Network Protocol | 802.1X;ARP;DDNS;DHCP;DNS;Easy DDNS;HTTP;HTTPS;ICMP;IGMP;IPv4;IPv6;Multicast;
NTP;RTCP;RTP;RTSP;SRTP;SSH;TLSv1.2,TLSv1.3;TCP/IP;UDP;Unicast;UPnP |
| Mobile Phone Access | Android;iOS;P2P_A |
| System Compatibility | CGI;SDK |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Manual recording;alarm recording;Schedule recording |
| Storage | Local HDD/USB storage device |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/Step/Digital Zoom |
| Alarm | |
| General Alarm | Motion;Mask Alarm;Alarm Input(IPC);Video Loss |
| Alert Alarm | IP Conflict;MAC Conflict;Network Disconnected;No disk;Illegal Access;Disk group space alert;Disk Full;Disk R/W error;Video Abnormal;Abnormal found in smart of disk;
Abnormal temperature of the disk;IPC voltage abnormal;RTC failure |
| Intelligent Analytics | |
| VCA Detection by Camera | Tripwire;Double Tripwire;Perimeter;Object Abandon;Object Missing;Loiter;Running;
Parking;Lens Dignose;Scene Switch Dignose;Signal Abnormal Detection;Signal Loss Detection;On Duty Detection;Crowd Detection |
| VCA Search | Early-warning search |
| Face Detection by Camera | |
| Performance | N/A |
| Face Attributes | N/A |
| Face Picture Library | N/A |
| Face Picture Comparison | N/A |
| External Port | |
| HDD | 1 SATA ports,up to 8TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Disk Group | 1 Disk Group |
| RAID | N/A |
| eSATA | N/A |
| USB | 2*USB2.0 |
| HDMI | 1*HDMI |
| VGA | 1*VGA |
| RJ-45 | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
| SATA | 1 SATA interface |
| RS232 | N/A |
| RS485 | N/A |
| Alarm I/O | N/A |
| POE | |
| POE Interface | N/A |
| POE Gross Power | N/A |
| Power per POE Port | N/A |
| Max Current per POE Port | N/A |
| General Parameter | |
| UI Language | English;Russian |
| Power Supply | DC12V 1.5A |
| Power Consumption | ＜10W(HDD not included,idling) |
| NetWeight | 0.4 kg |
| GrossWeight | 0.7 kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10℃～+55℃ |
| Operating Humidity | 10%~90%RH |
| Storage Temperature | -10℃～+55℃ |
| Storage Humidity | 10%~90%RH |
| Package Kit | Network Video Recorder;Screw pack;Mouse;Power adapter |
