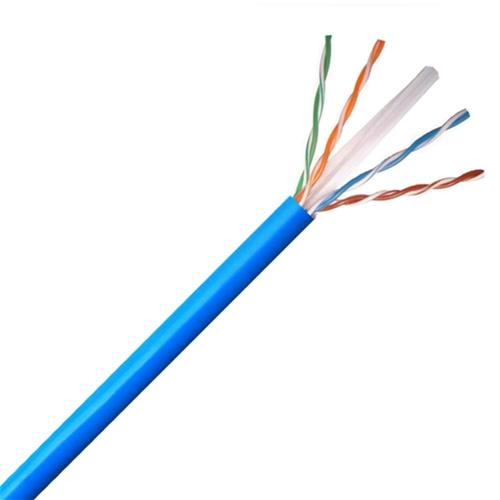

Kabl UTP cat. 6e
Kabl UTP cat. 6e
Regular price
55.00 RSD
Regular price
Sale price
55.00 RSD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Kabl UTP cat. 6e, Bunt 305m
High-Performance Data Communications Cable
4 Pair Easily Identified Color-Striped Pairs
Conductor: Copper Clad Aluminum 23AWG(0.57)
Insulation: HDPE 1.02
Separator: PP
Ripcord: Nylon
Jacket: PVC 6.0±0.2
| Basic Construction | |||||||
| Material | Diameter (mm) | ||||||
| Conductor | Copper Clad Aluminum | 23AWG(0.57) | |||||
| Insulation | HDPE | 1.02 | |||||
| Separator | PP | ||||||
| Ripcord | Nylon | ||||||
| Jacket | PVC | 6.0±0.2 | |||||
| Basic Characteristics | |||||||
| Temperature Rating | -20℃ to 70℃ | ||||||
| Dielectric Breakdown | 2500V | ||||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||||
| Characteristics Impedance | 100Ω | ||||||
| Other Electric Performance | Frequency （MHz） |
Attenuation （dB/100m） |
Return Loss （dB/100m） |
Pair to Pair | |||
| Next (dB/100m） | ELFEXT （dB/100m） |
||||||
| 10 | 20 | 200 | 753 | 638 | |||
| 40 | 38 | 230 | 663 | 517 | |||
| 80 | 53 | 245 | 618 | 457 | |||
| 100 | 60 | 250 | 603 | 428 | |||
| 160 | 76 | 250 | 572 | 397 | |||
| 200 | 85 | 250 | 558 | 377 | |||
| 250 | 95 | 243 | 543 | 358 | |||
| 3.125 | 107 | 236 | 529 | 339 | |||
| 625 | 154 | 215 | 484 | 300 | |||
| 1.000 | 198 | 201 | 453 | 290 | |||
| 1.550 | 252 | 188 | 424 | 281 | |||
| 2.000 | 290 | 180 | 408 | 278 | |||
| 2.500 | 329 | 173 | 393 | 238 | |||
| 400 | 408 | 169 | 393 | 188 | |||
| Minimum Bend Radius | 8×Diameter | ||||||
| Flammability / Reaction to Fire | IEC/EN 60332-1-2:2005+A1:2016+A11:2016+A12:2021 | ||||||
| CPR Compliance | CPR Euroclass: Eca | ||||||
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS), EU Directive 2015/863/EU (RoHS 2 amendment) |
||||||
| Other Standard Compliance(s): |
ANSI/TIA-568, Category 6 |
||||||
